Home Heating, Fans, Ventilation, Vacuum Indoor Air Quality Supply & Exhaust Fans/Ventilators BROAN ZB110 110 CFM FAN 0.3 SONES

BROAN ZB110 110 CFM FAN 0.3 SONES

PART ZB110 BROAN
MANUFACTURER Broan
MANUFACTURER PART # ZB110
Calculating price...
QUANTITY

About this item

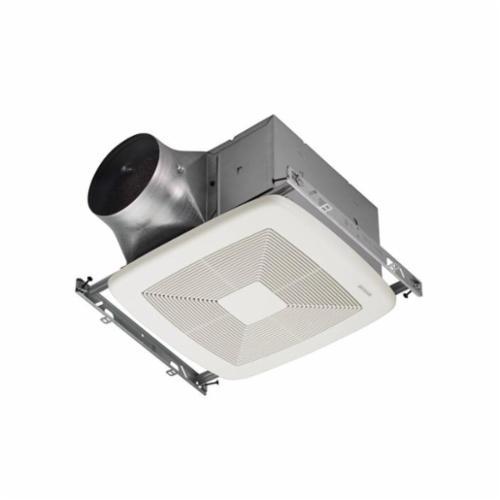

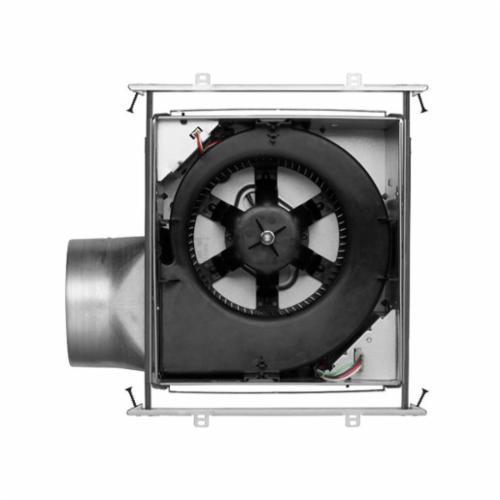

Broan ULTRA GREEN Ventilation Fan, Multi-Speed, 110 cfm, 6 in Duct Dia, 120 VAC, 0.2 A, 60 Hz, 7.7 W, 13 in Grille Length, 13-3/4 in Grille Width, Polymer Grille, 10-1/2 in Housing Length, 11-3/8 in Housing Width, 7-5/8 in Housing Height, Ceiling Mount, White, Domestic

ENERGY STAR Certified|HVI 2100 Certified|UL Listed
Less than 0.3 Sones sound level|ULTRA Green energy saving DC motor - efficiency well beyond energy star requirements, can be used to comply with ASHRAE 62.2, LEED, energy star for homes as well as local/spot ventilation needs|ULTRASilent sound technology - HVI certified best-achievable lesser than 0.3 Sones level provides nearly silent operation for a relaxing environment, state-of-the-art blower and duct outlet design smooth's airflow, high tech DC motor designed for nearly silent operation|ULTRASmart control technology powerful operation maintained over a wide range of real-world installations (cfm ratings maintained through at least 1/4 in SP), rated for continuous operation|ULTRAQuick installation technology - unique telescoping mounting frame (spans upto 24 in on-center framing) fits through retrofit drywall opening to allow easy installation from the room side|No attic access needed|Captive screws allow for easy new construction installation, mounting frame positioning tabs provide easy vertical positioning for new construction|Mounting frame positioning tabs provide easy vertical positioning for new construction|easy-to-insert and remove snap-in housing|No screws required, easy-to-insert and remove snap-in blower, inside or outside duct connector and knockout plate mounting provides flexibility for new construction or retrofit|110 cfm at 0.10 in, 1/4 in flow rate|Round duct|UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)|Rectangular grille shape
Amperage Rating 0.2
Color White
Domestic/Import Domestic
Duct Diameter 6
Flow Rate 110
Frequency Rating 60
Grille Length 13
Grille Material Polymer
Grille Width 13-3/4
Housing Height 7-5/8
Housing Length 10-1/2
Housing Width 11-3/8
Mounting Type Ceiling
Power Rating 7.7
Type Multi-Speed
Voltage Rating 120
Brand Broan
Manufacturer Broan-NuTone
Catalog
Catalog
Warranty Information
Warranty Information
Specification Sheet
Specification Sheet
Instruction/Installation Manual
Instruction/Installation Manual
