BLKBRN WR399 4/0 TO 4/0 H TAP CONN

PART WR399 BB

MANUFACTURER Blackburn

MANUFACTURER PART # WR399

Calculating price...

QUANTITY

About this item

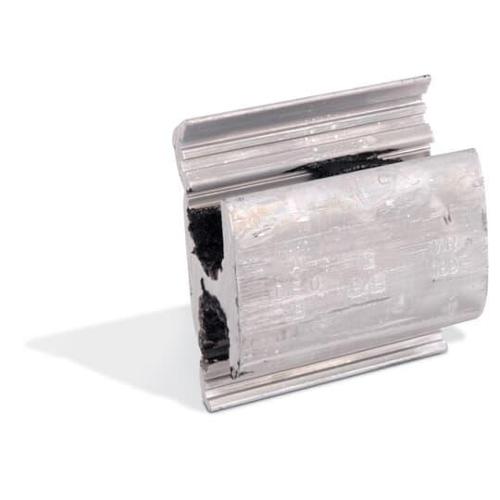

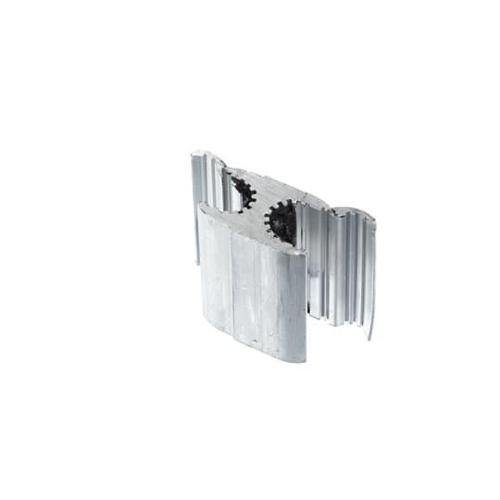

Blackburn Compression Tap Connector, Type H Wide Range, Series: WR Series, H Shape, 4/0 to 3/0 AWG ACSR/Stranded Main/Run, 1 to 2/0 AWG ACSR, 1/0 to 2/0 AWG Stranded, 2/0 to 3/0 AWG Solid Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, Specifications: O Die Code, 0.461 to 0.563 in Dia Main Conductor, 0.338 to 0.447 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 2-3/16 in L Dimensions

ANSI C119.4|RUS Accepted

Made of 1350 aluminum alloy for high strength and high conductivity|Standard compression tools and dies install all sizes no special tools needed|Field proven ribbed design enables excellent connector/conductor contact without distorting the conductor shape|Fold-in tabs provide tab interlock as tool closes|Prefilled with oxide inhibitor held captive in the rib/connection area|Compression/crimp connection

Conductor Type ACSR/Aluminum/Copper/Solid/Stranded

Dimensions 2-3/16 in L

Main/Run Size 4/0 to 3/0 AWG ACSR/Stranded

Material Aluminum

Series WR Series

Shape H

Specifications O Die Code, 0.461 to 0.563 in Dia Main Conductor, 0.338 to 0.447 in Dia Tap Conductor, 2-Conductor

Tap Size 1 to 2/0 AWG ACSR, 1/0 to 2/0 AWG Stranded, 2/0 to 3/0 AWG Solid

Temperature Rating 90

Type Type H Wide Range

Brand Blackburn

Manufacturer ABB
