SIE V7F3644 VACU-BRK SW 17IN 200/20

PART V7F3644 SIE
MANUFACTURER Siemens
MANUFACTURER PART # V7F3644
Calculating price...
QUANTITY

About this item

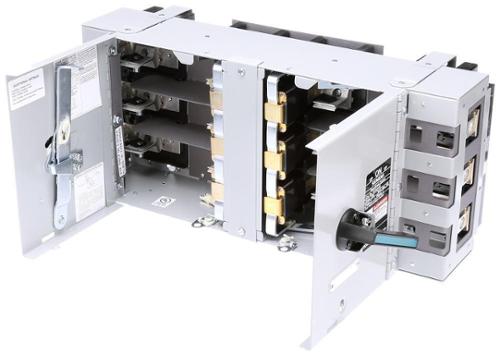

Siemens Vacu-Break Panelboard Disconnect Switch, Type VB Fused, 240 VAC, 200 A, 25 hp, 3 ph, 60 Hz Frequency, 3 Pole, 200 kA Short Circuit, TPST Contact Form, Handle Actuator, Fiber Insulation, NEMA 1 Enclosure, Panel Mounting, Screw Terminal, -20 to 120 deg F, 10 in H x 17 in W x 6-3/4 in D Dimensions
For SB1, SB2 switchboards and F1, F2 panelboards
Actuator Type Handle
Amperage Rating 200
Contact Form TPST
Dimensions 10 in H x 17 in W x 6-3/4 in D
Enclosure Type NEMA 1
Frequency Rating 60
Horsepower 25
Insulation Type Fiber
Mounting Type Panel
Number of Poles 3
Phase 3
Short Circuit Current Rating 200
Temperature Rating -20 to 120
Terminal Type Screw
Type Type VB Fused
Voltage Rating 240
Brand Siemens
Manufacturer Siemens
