SIE V7F3604R VACU-BRK SW 17IN 200A

PART V7F3604R SIE
MANUFACTURER Siemens
MANUFACTURER PART # V7F3604R
Calculating price...
QUANTITY

About this item

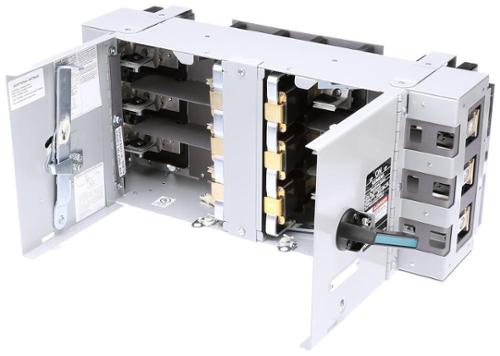

Siemens Vacu-Break Panelboard Disconnect Switch, Type VB Fused Single Unit, 600 VAC, 200 A, 60 hp, 3 ph, 60 Hz Frequency, 3 Pole, 200 kA Short Circuit, TPST Contact Form, Handle Actuator, Non-Insulated Insulation, NEMA 1 Enclosure, Inside Panelboard Mounting, Screw Terminal, -20 to 120 deg F, 10 in H x 17 in W x 6-3/4 in D Dimensions

UL 98 File No. E6849
Siemens Vacu-Break? Panelboard Disconnect Switch, Type VB Fused Single Unit, 600 VAC, 200 A, 60 hp, 3 ph, 60 Hz Frequency, 3 Pole, 200 kA Short Circuit, TPST Contact Form, Handle Actuator, Non-Insulated Insulation, NEMA 1 Enclosure, Inside Panelboard Mounting, Screw Terminal, -20 to 120 deg F, 10 in H x 17 in W x 6-3/4 in D Dimensions
Actuator Type Handle
Amperage Rating 200
Contact Form TPST
Dimensions 10 in H x 17 in W x 6-3/4 in D
Enclosure Type NEMA 1
Frequency Rating 60
Horsepower 60
Insulation Type Non-Insulated
Mounting Type Inside Panelboard
Number of Poles 3
Phase 3
Short Circuit Current Rating 200
Temperature Rating -20 to 120
Terminal Type Screw
Type Type VB Fused Single Unit
Voltage Rating 600
Brand Siemens
Manufacturer Siemens
