SIE V7E2233LR VACU-BRK SW 17IN 100/

PART V7E2233LR SIE

MANUFACTURER Siemens

MANUFACTURER PART # V7E2233LR

Calculating price...

QUANTITY

About this item

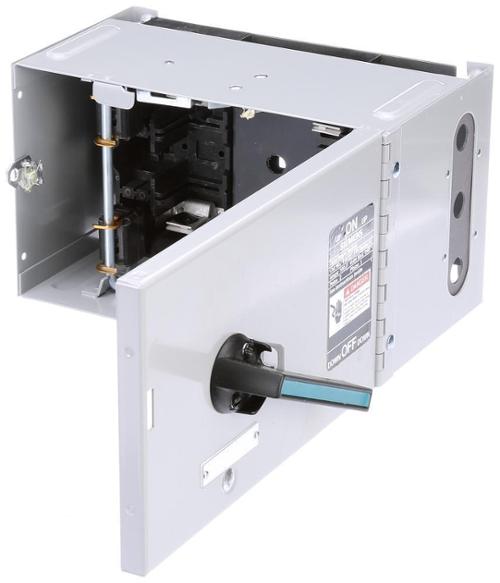

Siemens Vacu-Break Panelboard Disconnect Switch, Type VB Fused, 250 VAC, 100 A, 7.5/20 hp, 1 ph, 60 Hz Frequency, 2 Pole, 200 kA Short Circuit, DPST Contact Form, Handle Actuator, Non-Insulated Insulation, NEMA 1 Enclosure, Inside Panelboard Mounting, Screw Terminal, -20 to 120 deg F, 7-1/2 in H x 17 in W x 6-3/4 in D Dimensions

UL 98 File No. E6849

Siemens Vacu-Break? Panelboard Disconnect Switch, Type VB Fused, 250 VAC, 100 A, 7.5/20 hp, 1 ph, 60 Hz Frequency, 2 Pole, 200 kA Short Circuit, DPST Contact Form, Handle Actuator, Non-Insulated Insulation, NEMA 1 Enclosure, Inside Panelboard Mounting, Screw Terminal, -20 to 120 deg F, 7-1/2 in H x 17 in W x 6-3/4 in D Dimensions

Actuator Type Handle

Amperage Rating 100

Contact Form DPST

Dimensions 7-1/2 in H x 17 in W x 6-3/4 in D

Enclosure Type NEMA 1

Frequency Rating 60

Horsepower 7.5/20

Insulation Type Non-Insulated

Mounting Type Inside Panelboard

Number of Poles 2

Phase 1

Short Circuit Current Rating 200

Temperature Rating -20 to 120

Terminal Type Screw

Type Type VB Fused

Voltage Rating 250

Brand Siemens

Manufacturer Siemens

Specification Sheet

Specification Sheet

Catalog

Catalog
