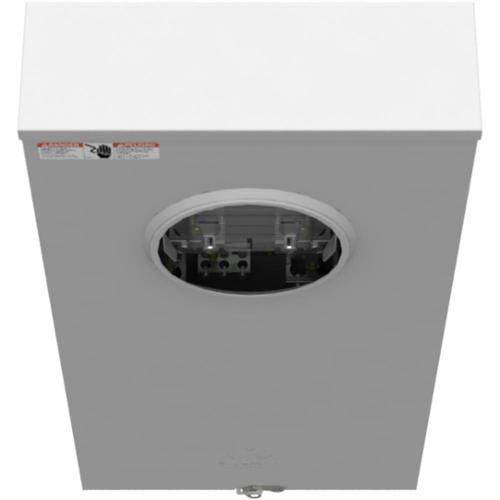

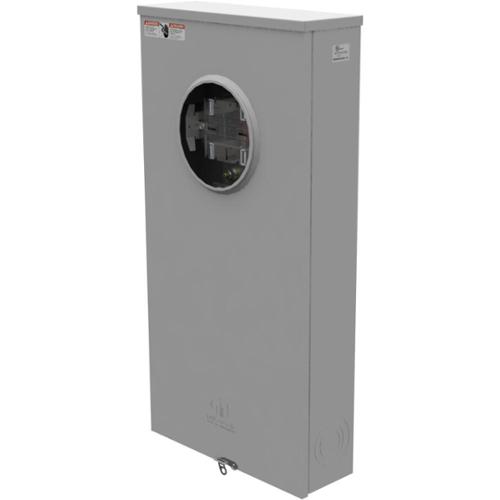

MILB U1129-O-K3L-K2L 320A 1-MTR SOCKET

PART U1129-O-K3L-K2L MILB

MANUFACTURER Milbank

MANUFACTURER PART # U1129-O-K3L-K2L

Calculating price...

QUANTITY

About this item

Milbank Meter Socket, Ring Less, 600 VAC, 320 A, 60 Hz Frequency, Underground Feed, 4 Jaws, 4 AWG to 600 kcmil, 6 AWG to 350 kcmil Wire, Blank Hub, Single/Double Mechanical Terminal, Surface Mounting, NEMA 3R Enclosure, 15 in W x 4-7/8 in D x 30 in H Dimensions

UL Listed|PROP65: This product can expose you to Chromium (hexavalent compounds), which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Single mechanical line-side and double mechanical load-side|G90 galvanized steel enclosure material with powder coat finish

Amperage Rating 320

Dimensions 15 in W x 4-7/8 in D x 30 in H

Enclosure Type NEMA 3R

Feed Type Underground

Frequency Rating 60

Hub Type Blank

Mounting Type Surface

Number of Jaws 4

Terminal Type Single/Double Mechanical

Type Ring Less

Voltage Rating 600

Wire Size 4 AWG to 600 kcmil, 6 AWG to 350 kcmil

Brand Milbank

Manufacturer Milbank Manufacturing

Instruction/Installation Manual

Instruction/Installation Manual

Warranty Information

Warranty Information
