FERRAZ ST4803PDGM 480V 3-PH DELTA W

PART ST4803PDGM FRZ
MANUFACTURER Mersen
MANUFACTURER PART # ST4803PDGM
Calculating price...
QUANTITY

About this item

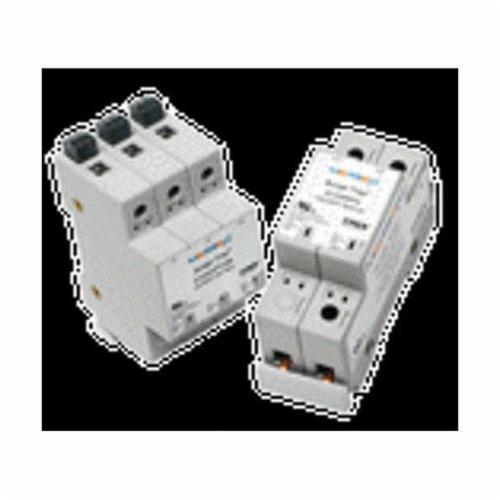

Mersen Surge-Trap Surge Protective Device, Modular, 480 VAC Electrical Rating, 50/60 Hz Frequency, 3 Pole, 4 Wires, 200 kA Short Circuit, 20 kA Nominal Discharge, Modes of Protection: L-N/L-G/L-L, <25 ns Response, Microswitch Indicator, 3 ph, Environmental Conditions: -40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature, IP20 Enclosure, DIN Rail Mounting, Box Terminal, 2.1 in W x 2.7 in D x 4.09 in H Dimensions

RoHS Compliant|UL 1449 File No. E210793 Type 1 Component Assembly|IEC 61643-1|ANSI C62.41|IEEE C62.41|CE Marked
Easy installation or retrofit|Fail safe, self-protected design|Visual indicator|IP20 finger safe design improves electrical safety|Small footprint|No additional overcurrent protection devices required|35 mm DIN rail mounting
Dimensions 2.1 in W x 2.7 in D x 4.09 in H
Electrical Ratings 480
Enclosure Type IP20
Environmental Conditions -40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature
Frequency Rating 50/60
Indicator Type Microswitch
Modes of Protection L-N/L-G/L-L
Mounting Type DIN Rail
Nominal Discharge Current 20
Number of Poles 3
Number of Wires 4
Phase 3
Response Time <25
Short Circuit Current Rating 200
Terminal Type Box
Type Modular
Brand Mersen
Manufacturer MERSEN
