SQ-D QO230 2P-120/240V-3 0A CB

PART QO230

MANUFACTURER Square D

MANUFACTURER PART # QO230

Calculating price...

QUANTITY

About this item

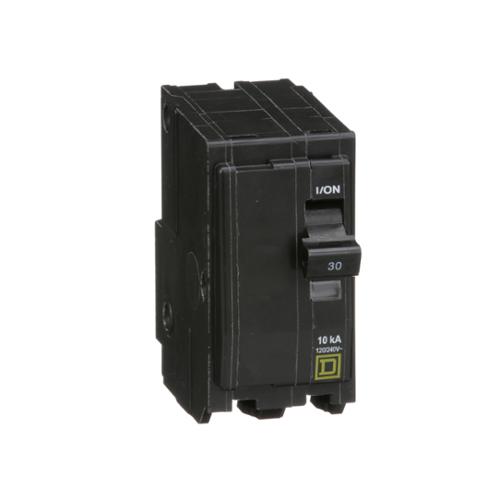

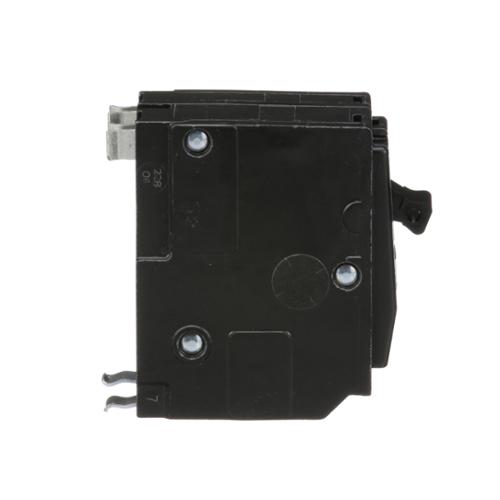

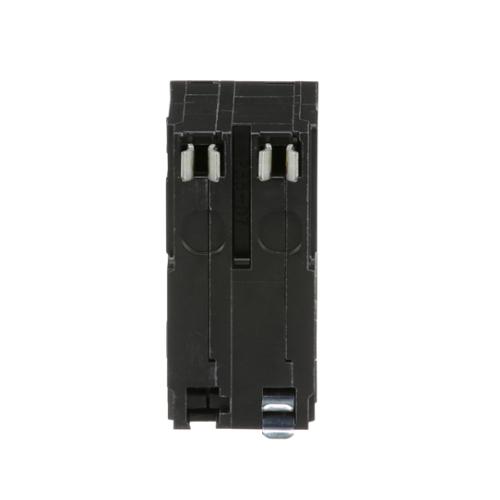

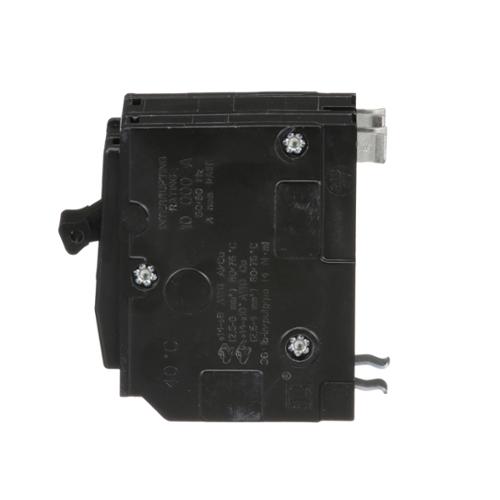

Square D, QO230, 2-Pole Miniature Circuit Breaker, Standard, 120/240 VAC, 30 A, 50/60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 3 in H x 1.5 in W x 2.91 in D Dimensions

CSA Certified|HACR Rated|RoHS Compliant|UL Listed

QO and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication|The tripping mechanisms in two-and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously|Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases, and Speed D switchboard distribution panels|14 - 10 AWG copper, 14 - 8 AWG copper/aluminum|Common trip|Standard

Amperage Rating 30

Connection Type Pressure Plate

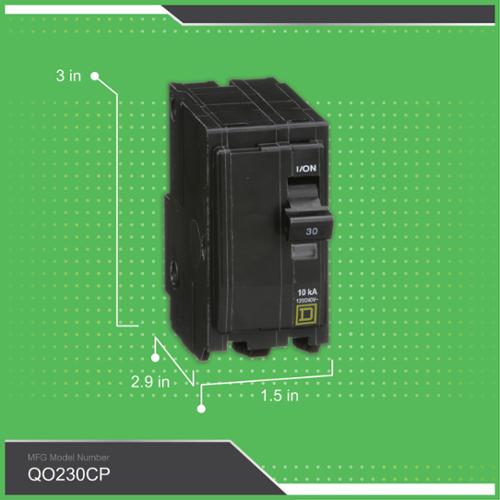

Dimensions 3 in H x 1.5 in W x 2.91 in D

Frame QO

Frequency Rating 50/60

Interrupt Rating 10

Mounting Type Plug-On

Number of Poles 2

Phase 1

Temperature Rating 40

Trip Type Thermal/Magnetic

Type Standard

Voltage Rating 120/240

Wire Size 14 to 10 AWG, 14 to 8 AWG

Brand Square D

Manufacturer Schneider Electric

Owners/User Manual

Owners/User Manual

RoHS

RoHS

Specification Sheet

Specification Sheet
