SIE PW2442L3200CU 3P LC 24S 42C ML 200A CU OUTDR

PART PW2442L3200CU

MANUFACTURER Siemens

MANUFACTURER PART # PW2442L3200CU

Calculating price...

QUANTITY

About this item

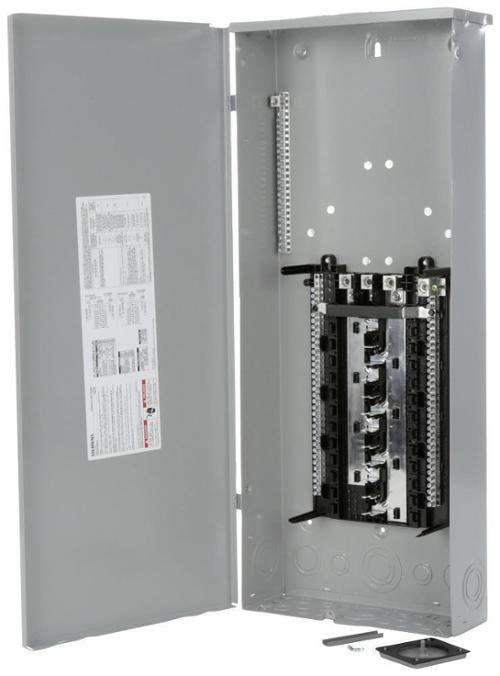

Siemens Three Phase Main Lug Load Center, Series: PL Series, 120/240 VAC, 200 A, 22 kA Interrupt, 42 Circuits, MBK150A/MBK200A Breaker, 3/4-Wire Delta Wiring Configuration, 200 A Bus Rating, 24 Spaces, Surface Mount, NEMA 3R Enclosure, 35 in H x 14-1/2 in W x 4-1/4 in D Enclosure Box

UL File No. E10703

Invertible for bottom feed application|All devices are provided with 2 factory installed ground bars|Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility|A rigid, sturdy base pan provides the ruggedness required for the most harsh applications|All devices convertible from main lug to main breaker and vice versa|Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws|The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field|Outdoor enclosure|Copper busbar

Amperage Rating 200

Breaker Type MBK150A/MBK200A

Bus Rating 200

Enclosure Box Size 35 in H x 14-1/2 in W x 4-1/4 in D

Enclosure Type NEMA 3R

Interrupt Rating 22

Mounting Type Surface

Number of Circuits 42

Number of Spaces 24

Series PL Series

Voltage Rating 120/240

Wiring Configuration 3/4-Wire Delta

Brand Siemens

Manufacturer Siemens

Specification Sheet

Specification Sheet

Catalog

Catalog
