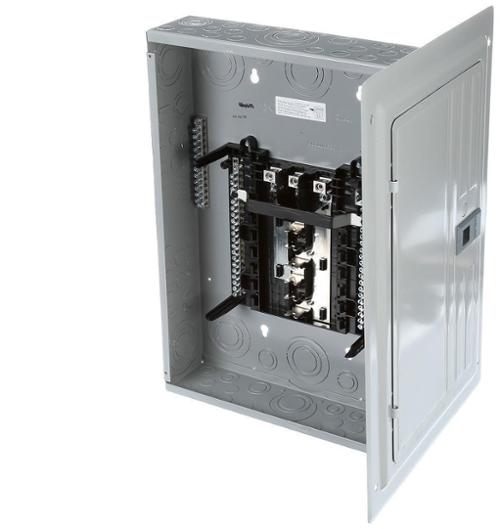

SIE P1224L3125CU 3PH LC 12S 24C ML 125A CU INDR

PART P1224L3125CU

MANUFACTURER Siemens

MANUFACTURER PART # P1224L3125CU

Calculating price...

QUANTITY

About this item

Siemens Three Phase Main Lug Load Center, Series: PL Series, 120/240 VAC, 125 A, 22 kA Interrupt, 24 Circuits, Q230/Q3100 Breaker, 3/4-Wire Delta Wiring Configuration, 125 A Bus Rating, 12 Spaces, NEMA 1 Enclosure, 21 in H x 14-1/4 in W x 3-7/8 in D Enclosure Box

UL File No. E10703

Invertible for bottom feed application|All devices are provided with 2 factory installed ground bars|Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility|A rigid, sturdy base pan provides the ruggedness required for the most harsh applications|All devices convertible from main lug to main breaker and vice versa|Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws|The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field|Indoor enclosure|Copper busbar|Combination mounting

Amperage Rating 125

Breaker Type Q230/Q3100

Bus Rating 125

Enclosure Box Size 21 in H x 14-1/4 in W x 3-7/8 in D

Enclosure Type NEMA 1

Interrupt Rating 22

Number of Circuits 24

Number of Spaces 12

Series PL Series

Voltage Rating 120/240

Wiring Configuration 3/4-Wire Delta

Brand Siemens

Manufacturer Siemens

Specification Sheet

Specification Sheet
