FERRAZ MPDB66651 PDB 1P CU INTERMED

PART MPDB66651 FRZ

MANUFACTURER Mersen

MANUFACTURER PART # MPDB66651

Calculating price...

QUANTITY

About this item

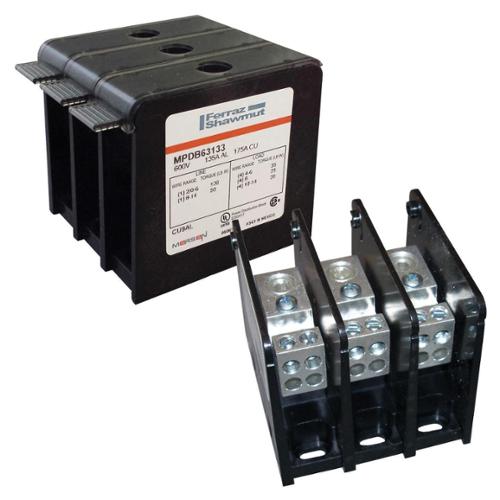

Mersen Power Distribution Block, Intermediate Open Style, Series: MPDB, 600 VAC, 310 A, 1 Pole, 1 Primary Connections/Pole, 10 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, 100 kA Short Circuit Current, Polycarbonate, Black, 3.25 in H x 1.85 in W x 5 in D

RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Certified|UL94-V0 Flammability

Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only|Connectors are all 1-piece tin plated|Insulators are virtually unbreakable, made of glass-filled polycarbonate|See-through, hinged safety covers provide a greater degree of safety and shock resistance where required|Hinged covers can be installed without tools|1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL 508A|Polycarbonate safety covers provide dead-front protection|One cover is needed for each pole|Each cover has a test probe hole in the center for circuit checking|6 AWG to 350 kcmil Cu line, 14 to 6 AWG Cu load

Amperage Rating 310

Color Black

Dimensions 3.25 in H x 1.85 in W x 5 in D

Material Polycarbonate

Number of Poles 1

Primary Connections/Pole 1

Secondary Connection/Pole 10

Series MPDB

Short Circuit Current Rating 100

Type Intermediate Open Style

Voltage Rating 600

Wire Size 6 AWG to 350 kcmil

Brand Mersen

Manufacturer MERSEN

Specification Sheet

Specification Sheet
