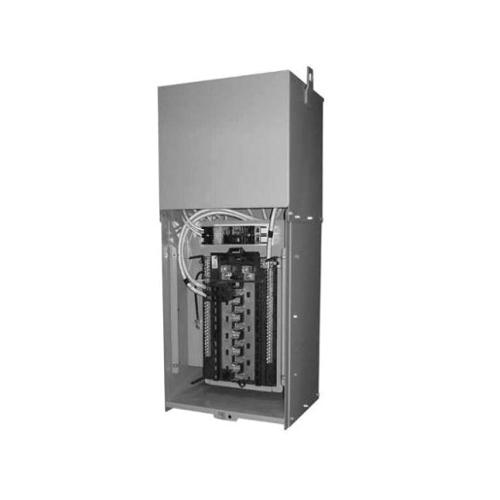

HMND M1PC005LESF PWRPLUS 1P 5KVA 480-240/120 AL

PART M1PC005LESF HMND

MANUFACTURER HPS

MANUFACTURER PART # M1PC005LESF

Calculating price...

QUANTITY

About this item

HPS, M1PC005LESF, Mini Power Center With Encapsulated Transformer, Series: PowerPlus, 480 VAC Primary, 120/240 VAC Secondary, 5 kVA Power, 60 Hz Frequency, 1 ph, 2 Taps, Copper Tab/Wire Lead Connection, Floor Mounting, 180 deg C Insulation, PPE1-N3R - Indoor/Outdoor Enclosure, 30 to 40 deg C, 11.25 in W x 7.75 in D x 31.93 in H Dimensions

RoHS Compliant|UL Listed|cULus Listed|CSA Certified|ANSI Certified|OSHA Compliant|NEMA ST-20

Combines a primary disconnect, shielded 1-phase transformer and output panel board in one system for easy, lockable installation in indoor or outdoor locations|HPS shielded transformers are encapsulated|An electrostatic shield is placed between the primary and secondary winding and grounded to reduce electrical interference and to provide additional protection|The HPS PowerPlus assembly comes fully equipped with a primary and secondary main circuit breaker|HPS PowerPlus accepts aluminum or copper conductors|The transformer is protected by the primary main breaker, which handles high interrupting fault conditions|2 at 5% FCBN taps

Connection Type Copper Tab/Wire Lead

Dimensions 11.25 in W x 7.75 in D x 31.93 in H

Enclosure Type PPE1-N3R - Indoor/Outdoor

Frequency Rating 60

Insulation 180

Mounting Type Floor

Number of Taps 2

Phase 1

Power Rating 5

Primary Voltage 480

Secondary Voltage 120/240

Series PowerPlus

Temperature Rating 30 to 40

Brand HPS

Manufacturer Hammond Power Solutions
