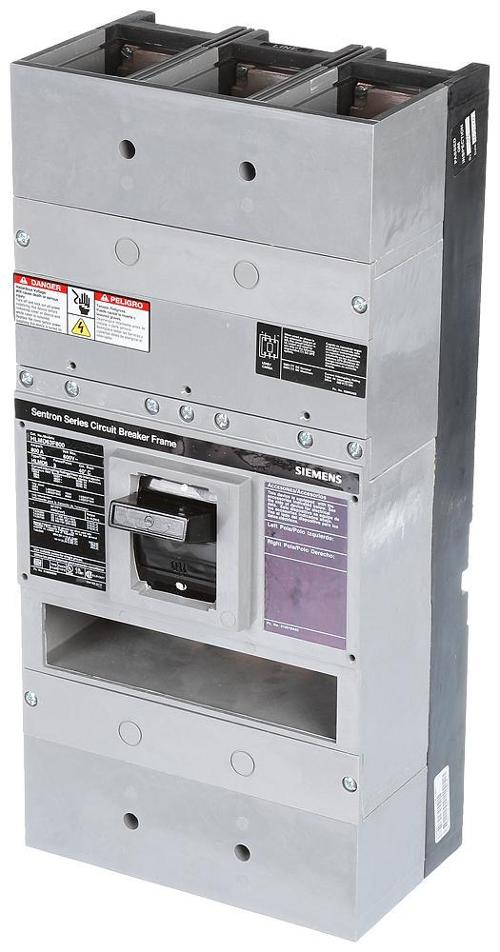

SIE HLMD63F800 BREAKER LMD 3P 800A

PART HLMD63F800 SIE

MANUFACTURER Siemens

MANUFACTURER PART # HLMD63F800

Calculating price...

QUANTITY

About this item

Siemens Sentron Breaker Frame, Low Voltage, 600 VAC, 500 VDC, 800 A, 3 Pole, Line/Load Lug Terminal, 50 kA IR, For Use With: LMD, HLMD6 Frame Thermal Magnetic Trip Molded Case Circuit Breaker, Specifications: 50/60 Hz, 40 deg C Operating Temperature, 3200 to 8000 Trip Range, 1/0 AWG to 500 kcmil Copper/Aluminum Wire Range, 6.6 in L x 10.3 in W x 18.5 in H Dimensions

HACR Rated|UL 489|IEC 60947-2

High IC rating|Varying enclosure and actuator

Amperage Rating 800

Dimensions 6.6 in L x 10.3 in W x 18.5 in H

IR Rating 50

Number of Poles 3

Specifications 50/60 Hz, 40 deg C Operating Temperature, 3200 to 8000 Trip Range, 1/0 AWG to 500 kcmil Copper/Aluminum Wire Range

Suitable For Use With LMD, HLMD6 Frame Thermal Magnetic Trip Molded Case Circuit Breaker

Terminal Type Line/Load Lug

Type Low Voltage

Voltage Rating 600 VAC/500 VDC

Brand Siemens

Manufacturer Siemens
