SIE GF323N DISC

PART GF323N

MANUFACTURER Siemens

MANUFACTURER PART # GF323N

Calculating price...

QUANTITY

About this item

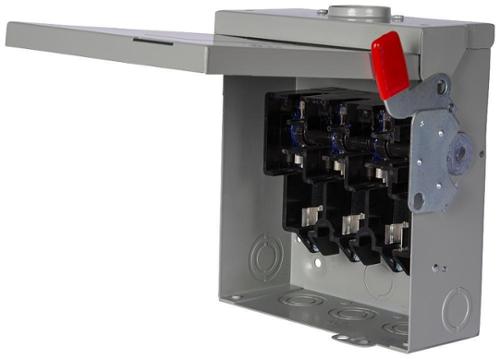

Siemens Safety Switch, Type VBII Enclosed Fusible General Duty Low Voltage Single Throw, 240 VAC, 100 A, 7-1/2 hp, 20 hp, 1/3 ph, 60 Hz Frequency, 3 Pole, 3 Wires, 100 kA Short Circuit, TPST Contact Form, Non-Insulated Insulation, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 22.08 in H x 10.68 in W x 6.52 in D Dimensions, Steel

UL Listed|UL 98

Cover interlock|Tangential knockouts through 600 A for easy conduit lineup|Quick make, quick break operating mechanism that ensures positive operation|Generous wiring gutters that meet or exceed NEC wire bending space requirements|Visible blade, double break switching action|Positive 2 or 3-point mounting|Highly visible red handle grip|Informative door labeling which includes replacement parts list|Handle and cover padlocking provisions|Side hinged door that opens 180 deg for easier wiring|A unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installers hands|Without insulation

Amperage Rating 100

Contact Form TPST

Dimensions 22.08 in H x 10.68 in W x 6.52 in D

Enclosure Type NEMA 1

Frequency Rating 60

Horsepower 7-1/2 hp, 20 hp

Insulation Type Non-Insulated

Material Steel

Mounting Type Surface

Number of Poles 3

Number of Wires 3

Phase 1/3

Short Circuit Current Rating 100

Temperature Rating -29 to 85

Terminal Type Lug

Type Type VBII Enclosed Fusible General Duty Low Voltage Single Throw

Voltage Rating 240

Brand Siemens

Manufacturer Siemens

Video Link

Video Link

Specification Sheet

Specification Sheet
