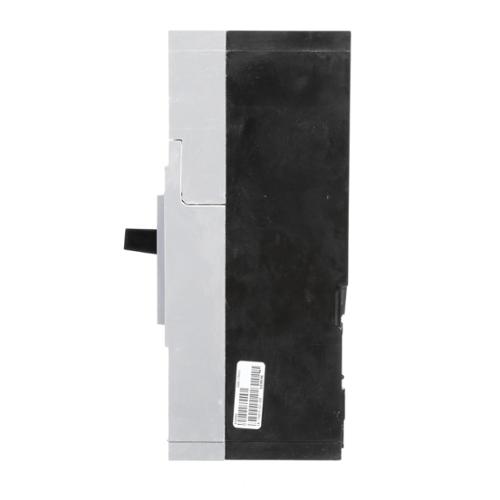

SIE FD62F250 BREAKER FD 2P 250A 600

PART FD62F250 SIE

MANUFACTURER Siemens

MANUFACTURER PART # FD62F250

Calculating price...

QUANTITY

About this item

Siemens Breaker Frame, Interchangeable Trip, 600 VAC, 250 VDC, 250 A, 2 Pole, Line/Load Lug Terminal, 22 kA IR, For Use With: Type FD6-A Molded Case Circuit Breaker, Specifications: 50/60 Hz Frequency, 1100 to 2500 A Trip Range, Bolt-On Connection, Thermal Magnetic Trip, 40 deg C Operating Temperature, 6.8 in L x 5.7 in W x 11.1 in H Dimensions

HACR Rated|UL 489|IEC 60947-2

Varying enclosure and actuator

Amperage Rating 250

Dimensions 6.8 in L x 5.7 in W x 11.1 in H

IR Rating 22

Number of Poles 2

Specifications 50/60 Hz Frequency, 1100 to 2500 A Trip Range, Bolt-On Connection, Thermal Magnetic Trip, 40 deg C Operating Temperature

Suitable For Use With Type FD6-A Molded Case Circuit Breaker

Terminal Type Line/Load Lug

Type Interchangeable Trip

Voltage Rating 600 VAC/250 VDC

Brand Siemens

Manufacturer Siemens
