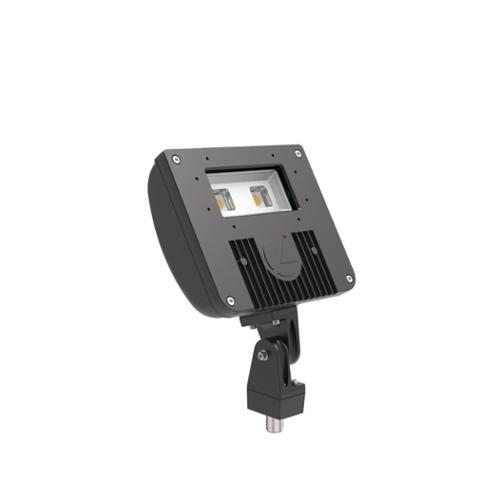

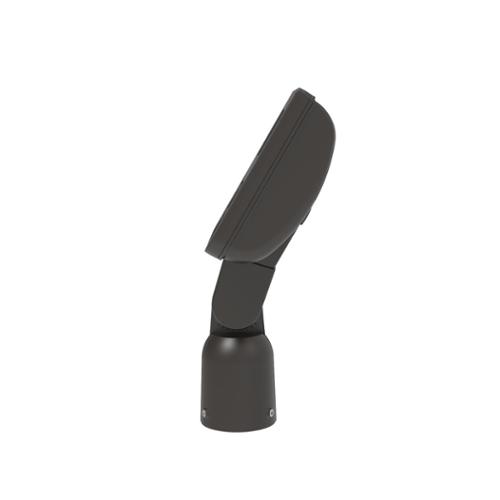

LITHONIA DSXF1LEDP140KM4 FLOODLIGHT

PART DSXF1LEDP140KM4

MANUFACTURER Lithonia Lighting

MANUFACTURER PART # DSXF1 LED P1 40K M4

Calculating price...

QUANTITY

About this item

Lithonia Lighting, DSXF1 LED P1 40K M4, Flood Light, Size 1 Rectangular, Series: DSXF1, 120 to 277 V, 21 W Fixture, 0.08/0.09/0.1/0.18 A, Static LED Lamp, 146 Lumens/W Light Output, 100000 hr Average Life, Cool White Light, 4000 K Color Temperature, 70 CRI, Tempered Glass Lens, 3058 Lumens, IP66 Enclosure, Knuckle Mounting, Die Cast Aluminum Housing Material, Dark Bronze Housing Finish, 12 in H x 8-7/8 in W x 3-1/8 in D Dimensions

ANSI/IEEE C62.41.2|DLC Listed|cCSAus Certified

The sleek design of the D Series size 1 flood reflects the embedded high performance LED technology|0.18 A at 120 V, 0.1 A at 208 V, 0.09 A at 240 V and 0.08 A at 277 V amperage rating|Die cast aluminum housing has integral heat sink fins to optimize thermal management through conductive and convective cooling|The LED driver is mounted in direct contact with the casting to promote low operating temperature and long life|Housing is completely sealed against moisture and environmental contaminants using a tempered glass lens(IP66)|Low EPA 0.6 sq-ft for optimized wind loading|Exterior parts are protected by a zinc infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering|A variety of precision molded vacuum metallized specular reflectors are engineered for superior target illumination, uniformity and spacing|Light engine(s) consist of chip on board (COB) LEDs directly coupled to the housing to maximize heat dissipation and promote long life 100000 hr and L80|Integral adjustable knuckle with 1/2-14 NPS threaded pipe, tenon slipfitter or integral slipfitter, facilitates quick and easy installation to a variety of mounting accessories

Amperage Rating 0.08/0.09/0.1/0.18

Average Life 100000

Color Rendering Index (CRI) 70

Color Temperature 4000

Dimensions 12 in H x 8-7/8 in W x 3-1/8 in D

Enclosure Type IP66

Fixture Wattage 21

Housing Finish Dark Bronze

Housing Material Die Cast Aluminum

Lamp Type Static LED

Lens Type Tempered Glass

Light Color Cool White

Light Output 146

Lumens 3058

Mounting Type Knuckle

Series DSXF1

Type Size 1 Rectangular

Voltage Rating 120 to 277

Brand Lithonia Lighting

Manufacturer Acuity Brands
