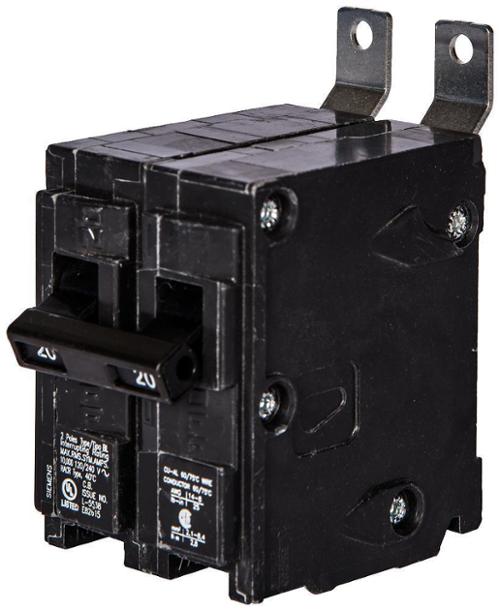

SIE B220 BREAKER 20A 2P 120/240V 10

PART B220
MANUFACTURER Siemens
MANUFACTURER PART # B220
Calculating price...
QUANTITY

About this item

Siemens Molded Case Circuit Breaker, Type BL, 120/240 VAC, 20 A, 60 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Toggle Actuator, Bolt-On Connection, 14 to 10 AWG, 12 to 10 AWG Wire, Panel Mounting, 40 deg C, 3 in L x 3 in W x 2 in H Dimensions

UL 489|HACR Rated
Sense when an over current occurs|Measure the amount of over current|Act by tripping quickly enough to prevent damage to itself and associated conductors|Mounting with insta-wire|14 to 10 AWG copper, 12 to 10 AWG aluminum wire
Actuator Type Toggle
Amperage Rating 20
Connection Type Bolt-On
Dimensions 3 in L x 3 in W x 2 in H
Frequency Rating 60
Interrupt Rating 10
Mounting Type Panel
Number of Poles 2
Phase 1
Temperature Rating 40
Trip Type Thermal/Magnetic
Type Type BL
Voltage Rating 120/240
Wire Size 14 to 10 AWG, 12 to 10 AWG
Brand Siemens
Manufacturer Siemens
