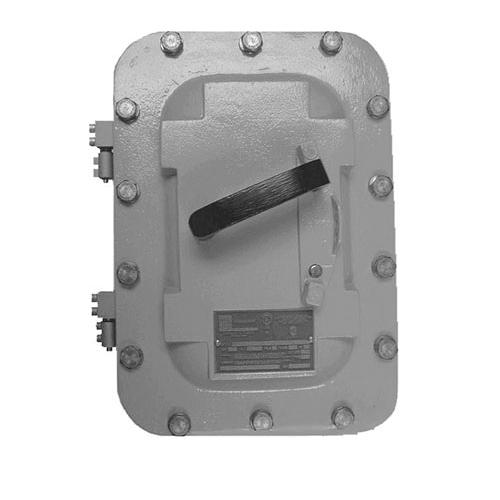

APP AEBB10036DS NON-FUSED DISC. SWI

PART AEBB10036DS APP

MANUFACTURER Appleton

MANUFACTURER PART # AEBB10036DS

Calculating price...

QUANTITY

About this item

Appleton Disconnect Switch, Dust-Ignitionproof Explosionproof Hinged Non Fused, Series: AE Series, 600/120 to 250 VAC/VDC, 100 A, 75 hp, 25 hp, 3 ph, 3 Pole, 3 Wires, External Handle Actuator, NEMA 4/4X/7/9 Enclosure, Bolt Mounting, Ground Lug Terminal, 20.5 in H x 11 in W x 8.97 in D Dimensions, Copper Free Aluminum, Gray, Epoxy Powder Coated

Buy American Act Compliant|NEC Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III|UL 1203|UL File No. E84577

Precision machined flame path between box and cover, O-ring gasket ensures watertight integrity|Bolt-On stainless steel slotted mounting feet|Stainless steel, captive Quad-Lead cover bolts are standard|Ground lug package and installation instructions for termination of ground wire enclosed|External operating handle with stops for limiting handle travel|Disconnects operators can be locked in the On or Off position|External flange maximizes internal space|Standard outlets top and bottom for line and load wiring|Plugged 1/2 in outlets top and bottom for breather and drain|Disconnects mounted on a galvanized steel removable pan

Actuator Type External Handle

Amperage Rating 100

Color Gray

Dimensions 20.5 in H x 11 in W x 8.97 in D

Enclosure Type NEMA 4/4X/7/9

Finish Epoxy Powder Coated

Horsepower 75 hp, 25 hp

Material Copper Free Aluminum

Mounting Type Bolt

Number of Poles 3

Number of Wires 3

Phase 3

Series AE Series

Terminal Type Ground Lug

Type Dust-Ignitionproof Explosionproof Hinged Non Fused

Voltage Rating 600/120 to 250

Brand Appleton

Manufacturer Emerson Electric
