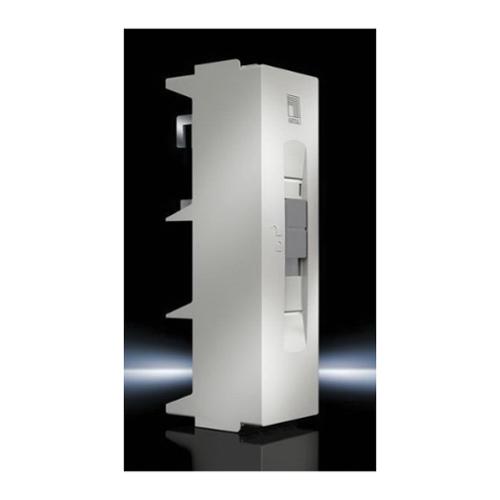

RTL 9342220 RILINE CONN ADPT 125A OUTLET TOP/BOT

PART 9342220 RTL
MANUFACTURER Rittal
MANUFACTURER PART # 9342220
Calculating price...
QUANTITY

About this item

Rittal Connection Adapter, For Use With: 5/10 mm Cross Section H Busbar, 60 mm Center-to-Center Spacing Bus System, 690 VAC, 125 A, 3-Pole, 3-Phase, Compact Enclosure, Cable Outlet Top/Bottom, 10 to 25 sq-mm Wire Size, ABS, Pale Gray, 210 mm H x 55 mm W

UL 94-V-0 Flammability Rating|UL Recognized
The rated operating voltage for DC applications depends on the busbar arrangement in the busbar support 934050/934150/934250|Fire protection corresponding to UL 94-V0|ABS cover, polyamide (PA 6.6) chassis, fiberglass reinforced, thermoplastic polyester (PBT)|Pale gray (RAL 7035) connection adaptor
Color Pale Gray
Dimensions 210 mm H x 55 mm W
Material ABS
Specifications 690 VAC, 125 A, 3-Pole, 3-Phase, Compact Enclosure, Cable Outlet Top/Bottom, 10 to 25 sq-mm Wire Size
Suitable For Use With 5/10 mm Cross Section H Busbar, 60 mm Center-to-Center Spacing Bus System
Brand Rittal
Manufacturer Rittal
