RTL 8245500 1400H1200W 0500D TS DBL TXT

PART 8245500 RTL

MANUFACTURER Rittal

MANUFACTURER PART # 8245500

Calculating price...

QUANTITY

About this item

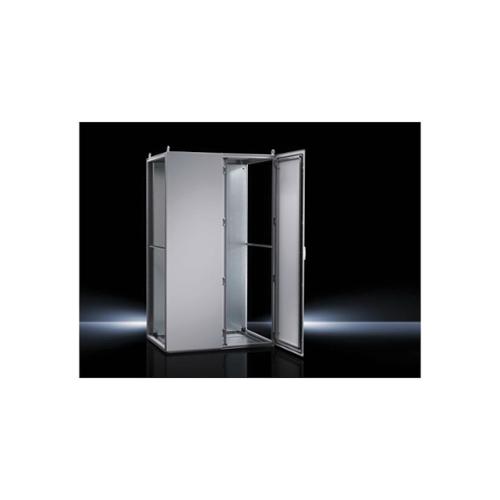

Rittal Baying System Enclosure, Double Door, Series: TS 8, 47 in Width, 20 in Depth, 55 in Height, NEMA 12/IP55, Hinged Cover, Lock: 3 mm Double Bit, 1500 lb, Floor Mount, Carbon Steel, Powder Coated, Light Gray

cULus Listed|CSA Certified|TUV Approved|RoHS Compliant

Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from sheet steel, saves considerable space and facilitates easy internal installation|It also allows a baying arrangement on all sides|In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety|RAL 7035 light gray color|1.5 mm THK carbon steel enclosure frame, 1.5 mm THK carbon steel roof, 2 mm carbon steel door, 1.5 mm carbon steel rear wall, 1.5 mm carbon steel base plates, 3 mm carbon steel mounting plate|Dipcoat primed enclosure frame, door, roof and rear panel, powder-coated on the outside, textured paint, zinc-plated mounting plate and base plates|51 in H x 43 in W mounting plate

Capacity 1500

Color Light Gray

Cover Type Hinged

Depth 20

Finish Powder Coated

Height 55

Lock 3 mm Double Bit

Material Carbon Steel

Mounting Type Floor

NEMA Rating NEMA 12/IP55

Series TS 8

Type Double Door

Width 47

Brand Rittal

Manufacturer Rittal

Specification Sheet

Specification Sheet

Line Drawing

Line Drawing

Instruction/Installation Manual

Instruction/Installation Manual
