Home Lighting Controls & Ballasts Ballasts & Drivers HID Emergency Ballasts ADV 71A6393500DEE MH BAL 450W M144 QUAD C C

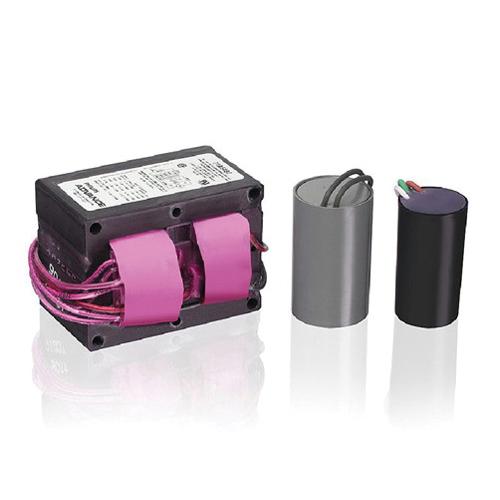

ADV 71A6393500DEE MH BAL 450W M144 QUAD C C

PART 71A6393500DEE ADV
MANUFACTURER Advance
MANUFACTURER PART # 71A6393500DEE
Calculating price...
QUANTITY

About this item

Advance HID Ballast, Magnetic, HID Metal Halide Lamp, 450 W Lamp, 508 W Wattage, 480/120T/208/240/277 VAC, 4.25/2.5/2.15/1.85 A, 60 Hz Frequency, Pulse Start, -40 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, 71A6393EE Lamp Base, Ballast Factor: 1, ANSI M144 Ballast Grade, 4.75 in L x 3.9 in W x 4.25 in H Dimensions

PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire|The core and coil also forms the nucleus of Philips advance five other ballast configurations|26.5 uF capacitor|2.15 A, 1.25 A, 1.1 A, 1 A input current (open circuit), 3.2 A, 1.8 A, 1.6 A, 1.4 A input current (starting), 2.2 to 3.3 A, 1.3 to 1.95 A, 1.1 to 1.7 A, 0.95 to 1.45 A input current (short circuit), 4.25 A, 2.5 A, 2.15 A, 1.85 A input current (nominal)|4-1/4 x 4-3/4 in (2 coil) core|1.75 in Dia x 4.8 in H oval capacitor|Core and coil ballast with dry film capacitor|UL insulation class H of 180 deg C
Amperage Rating 4.25/2.5/2.15/1.85
Ballast Factor 1
Ballast Grade ANSI M144
Dimensions 4.75 in L x 3.9 in W x 4.25 in H
Dimmable No
Frequency Rating 60
Lamp Base Type 71A6393EE
Lamp Type HID Metal Halide
Lamp Wattage 450
Minimum Starting Temperature -40
Number of Lamps 1
Power Factor 0.9
Start Type Pulse
Thermal Protection Class P
Type Magnetic
Voltage Rating 480/120T/208/240/277
Wattage 508
Brand Advance
Manufacturer Signify
