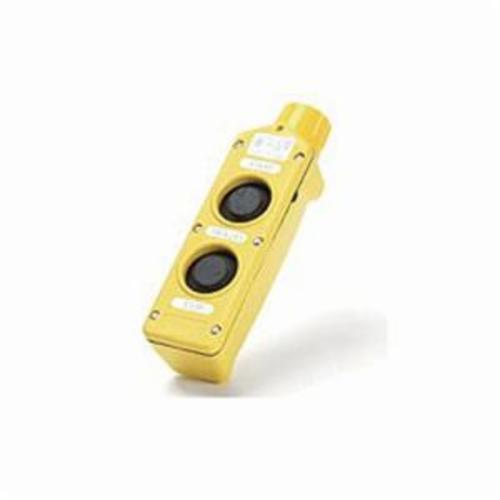

Woodhead Watertite Pushbutton Pendant Station Switch, SPDT-DB, Series: 130126, 240 VAC, 10 A, Momentary Operator, Flush Round Pushbutton Actuator, Compression Cord Grip Connection, Surface Mounting, Nylon, Yellow, 6 in L x 1.88 in W x 1.86 in H Dimensions
CSA File No. LR32400|UL Listed



                        Lightweight, polycarbonate pendant enclosure is double insulated, UV stabilized and chemically resistant to provide long life|Ergonomic design fits easily in the palm of your hand for greater comfort and reduced fatigue|Single speed, double throw, momentary contacts can be wired either normally open or normally closed for complete application flexibility|An elastic, chemically resistant gasket ensures a tight seal between front and back|MAX-LOC strain relief included as standard to provide maximum cord pullout resistance|Neoprene cover gasket seal, rubber pushbutton diaphragm seal|MAX-LOC nylon strain relief with rubber grommet cord connection, stainless steel cover face screws|35 self-adhesive, pre-printed labels on one acetate sheet nameplate set|5/16 to 5/8 in Dia cord|Two buttons, F2 1/2 in cord grip body size, 1/2 hp at 125 VAC, 3/4 hp at 250 VAC, 1 hp at 125 VAC or 250 VAC|Wet industrial duty|Single speed, double throw, momentary type, fine sliver|240 VAC 30 A make 3 A break|Compression cord grip with support hole







                                    Actuator
                                    Flush Round Pushbutton



                                    Amperage Rating
                                    10



                                    Color
                                    Yellow



                                    Connection Type
                                    Compression Cord Grip



                                    Dimensions
                                    6 in L x 1.88 in W x 1.86 in H



                                    Material
                                    Nylon



                                    Mounting Type
                                    Surface



                                    Operator Type
                                    Momentary



                                    Series
                                    130126



                                    Type
                                    SPDT-DB



                                    Voltage Rating
                                    240



                                    Brand
                                    Woodhead



                                    Manufacturer
                                    Molex
