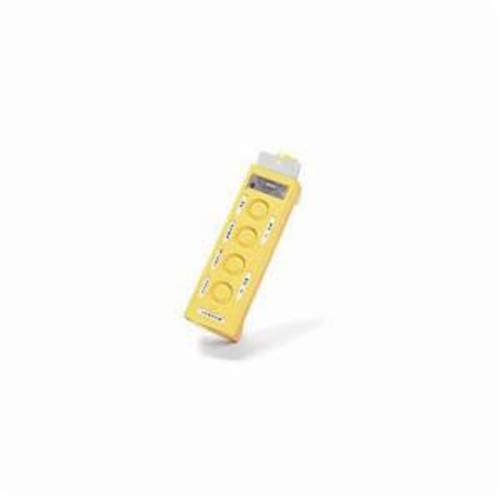

Woodhead Super-Safeway Pushbutton Pendant Station, Raintight, Series: 130126, 250 VAC, 0.5 A, NC-NO Contact Form, Momentary Operator, Flush Round Pushbutton Actuator, Rubber, Yellow, 5.88 in L x 3 in W x 2.66 in H Dimensions
CSA File No. LR32400



                        Unique, industry-leading, NEoTEX Paracril OZO rubber pendant stations yield the best performance for abrasion, chemical exposure and temperature extremes|Ergonomic design fits easily in the palm of your hand for greater comfort and reduced fatigue|Single and 2-speed buttons can be wired as an electrical interlock for improved safety|An elastic, chemically resistant gasket ensures a tight seal between front and back|MAX-LOC strain relief included as standard to provide maximum cord pullout resistance|Neoprene gasket and o-ring seal, NEo-TEX Paracril OZO rubber pendent cover and housing|MAX-LOC nylon strain relief with rubber grommet cord connection, zinc plated steel Messenger cable bracket and cover screws|35 self-adhesive, pre-printed labels on one acetate sheet nameplate set|1/2 to 11/16 in Dia cord|2 buttons, 1 speed, F3 3/4 in cord grip body size, 2 hp at 250 VAC|Pushbuttons are not exposed beyond enclosure face to prevent unwanted activation and button protection|Housing to cover fitted with tongue and groove design for best sealing performance|Built-in ground connection saves installation time







                                    Actuator
                                    Flush Round Pushbutton



                                    Amperage Rating
                                    0.5



                                    Color
                                    Yellow



                                    Contact Form
                                    NC-NO



                                    Dimensions
                                    5.88 in L x 3 in W x 2.66 in H



                                    Material
                                    Rubber



                                    Operator Type
                                    Momentary



                                    Series
                                    130126



                                    Type
                                    Raintight



                                    Voltage Rating
                                    250



                                    Brand
                                    Woodhead



                                    Manufacturer
                                    Molex
