DISC SWTCH 3P R/Y ROTARY 125A DINRL BASE

PART 3LD2814-0TK53 SIE

MANUFACTURER Sentron

MANUFACTURER PART # 3LD2814-0TK53

Calculating price...

QUANTITY

About this item

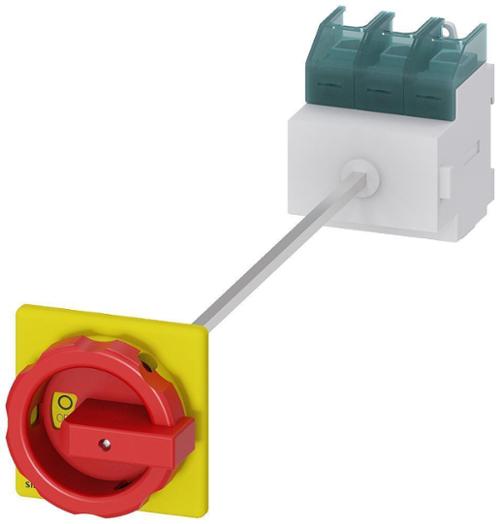

Sentron Disconnect Switch, 3LD Emergency Switching Off, Series: 3LD2814-0TK53, 690 VAC, 125 A, 50/60 Hz, 3 Poles, 2000 A Short Circuit, Short Rotary Knob Actuator, IP65, 4-Hole Built-In Fixed Floor Mount, Box Terminal, -20 to 120 deg F, 106 mm H x 90 mm W x 470.5 mm D, Red/Yellow

UL Listed|CCC Certified|CE Certified|CSA Certified

45 kW at AC-23 A 400 VAC/37 kW at AC-23 A 690 VAC/37 kW at AC-3 400 VAC/30 kW at AC-3 690 VAC

Actuator Type Short Rotary Knob

Amperage Rating 125

Color Red/Yellow

Dimensions 106 mm H x 90 mm W x 470.5 mm D

Enclosure Type IP65

Frequency Rating 50/60

Mounting Type 4-Hole Built-In Fixed Floor

Number of Poles 3

Short Circuit Current Rating 2000

Temperature Rating -20 to 120

Terminal Type Box

Type 3LD Emergency Switching Off

Voltage Rating 690

Brand Sentron

Manufacturer Siemens
