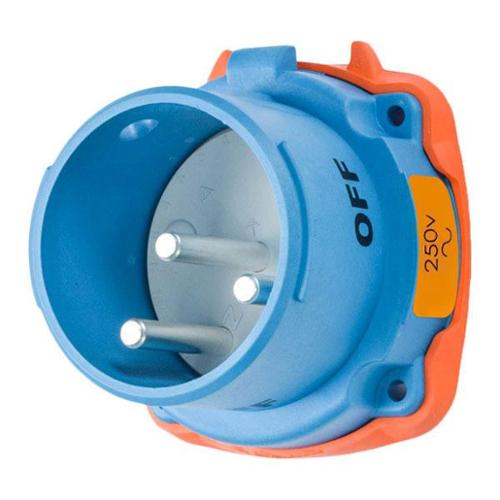

MEL 33-38072 DS30 INLET

PART 33-38072 MEL
MANUFACTURER MELTRIC
MANUFACTURER PART # 33-38072
Calculating price...
QUANTITY

About this item

MELTRIC DECONTACTOR Male Inlet, Switch Rated, Series: DS30, 110/125/220/250 VAC, 30 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 3R, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.07 in Dia x 2.05 in L Dimensions

ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682|UL 1682|CSA 182.1|CE Marked|NOM Certified|IEC Certified|NFPA 70E
Switch and horsepower rated (AC only|65 to 100 kA short circuit rated|Up to 200 A amperage rating|Up to 4 auxiliary contacts|Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions|Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance|14 to 6 AWG wiring capacity|1-1/2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 5 hp at 208/240 VAC, 15 hp at 480/600 VAC 3-phase horsepower rating
Amperage Rating 30
Color Blue
Dimensions 3.07 in Dia x 2.05 in L
Enclosure IP54/IP55
Frequency Rating 60
Material Polyester
NEMA Rating NEMA 3R
Number of Poles 2
Number of Wires 3
Series DS30
Temperature Rating -40 to 140
Terminal Type Screw
Type Switch Rated
Voltage Rating 110/125/220/250
Brand MELTRIC
Manufacturer Meltric Corporation
