Home Wiring Connectors Terminal Blocks Feed-Thru Blocks, Standard PHX 3211813 PT 6 FEED-TH ROUGH TERM BLOCK CONNECT

PHX 3211813 PT 6 FEED-TH ROUGH TERM BLOCK CONNECT

PART 3211813 PHX
MANUFACTURER Phoenix Contact
MANUFACTURER PART # 3211813
Calculating price...
QUANTITY

About this item

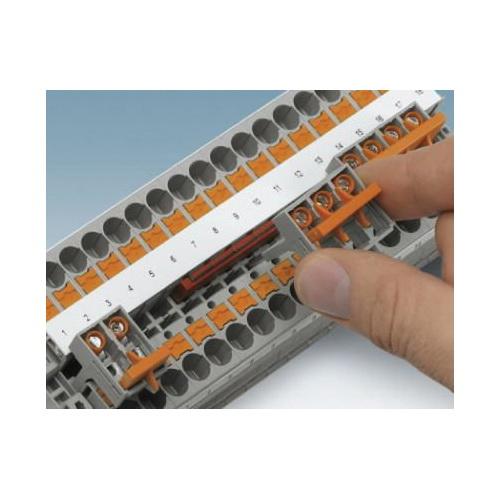

Phoenix Contact Feed-Through Terminal Block, 1-Level 1-Circuit 2-Connection Single Tier, 1000 VAC, 41 A, 20 to 8 AWG Wire, 10 to 12 mm Wire Strip Length, Feed-Through Terminal, DIN Rail Mount, Push-In, -60 to 130 deg C, Polyamide, Gray, 57.7 mm L x 8.2 mm W x 42.2 to 51 mm H

IEC 60947-7-1|UL 94-V-0 Flammability Rating|REACH Compliant|DNV GL TAE000010T|CSA 13631|PRS TE/2107/880590/16|BV 37796/A2 BV|LR 12/20038 (E3)|ClassNK 14ME0913|UL/cUL File No. E60425|IECEE CB Scheme DE1-57203|VDE 40035239|EAC Certified|cULus Recognized|IECEx SEV13.0005U|Ex ATEX SEV13ATEX0159U|UL/cUL File No. E192998|EAC Ex Certified|RoHS Compliant
The push-in connection terminal blocks are characterized by the system features of the Clipline complete system and by easy and tool free wiring of conductors with ferrules or solid conductors|The compact design and front connection enable wiring in a confined space|In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Amperage Rating 41
Color Gray
Connection Type Push-In
Dimensions 57.7 mm L x 8.2 mm W x 42.2 to 51 mm H
Material Polyamide
Mounting Type DIN Rail
Temperature Rating -60 to 130
Terminal Type Feed-Through
Type 1-Level 1-Circuit 2-Connection Single Tier
Voltage Rating 1000
Wire Size 20 to 8
Wire Strip Length 10 to 12
Brand Phoenix Contact
Manufacturer Phoenix Contact
