Home Wiring Connectors Terminal Blocks Feed-Thru Blocks, Standard PHX 3209578 PT 2 5-QUATT RO FEED-THROUGH TERM BLO

PHX 3209578 PT 2 5-QUATT RO FEED-THROUGH TERM BLO

PART 3209578 PHX
MANUFACTURER Phoenix Contact
MANUFACTURER PART # 3209578
Calculating price...
QUANTITY

About this item

Phoenix Contact Feed-Through Terminal Block, 1-Level 1-Circuit 4-Connection Single Tier, 800 VAC, 28 A, 4 Pole, 26 to 12 AWG Wire, 8 to 10 mm Wire Strip Length, Feed-Through Terminal, DIN Rail Mount, Push-In, 125 deg C, Polyamide, Gray, 72.2 mm L x 5.2 mm W x 35.3 to 44.3 mm H

IEC 60947-7-1|UL 94-V-0 Flammability Rating|REACH Compliant|DNV GL TAE00000UD_01|ClassNK 14ME0912|CSA 13631|BV 252|LR 10/20040|ABS 16-HG1591536-PDA|UL File No. E60425|IECEE CB Scheme DE1-61341|VDE 40032222|EAC Certified|cULus Recognized|EAC Ex Certified|IECEx PTB 10.0021U|Ex ATEX PTB 09ATEX1111U|UL/cUL File No. E192998|RoHS Compliant

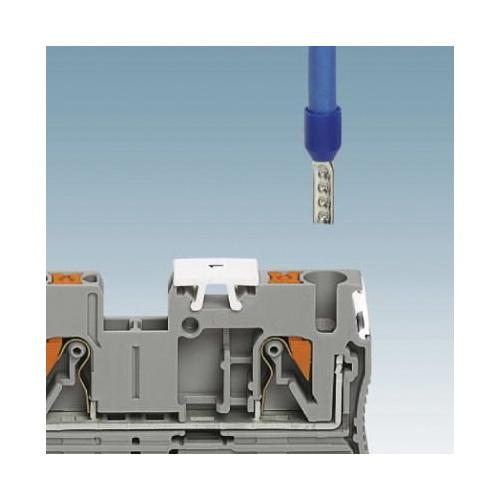

The push-in connection terminal blocks are characterized by the system features of the Clipline complete system and by easy and tool free wiring of conductors with ferrules or solid conductors|The compact design and front connection enable wiring in a confined space|In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Amperage Rating 28
Color Gray
Connection Type Push-In
Dimensions 72.2 mm L x 5.2 mm W x 35.3 to 44.3 mm H
Material Polyamide
Mounting Type DIN Rail
Number of Poles 4
Temperature Rating 125
Terminal Type Feed-Through
Type 1-Level 1-Circuit 4-Connection Single Tier
Voltage Rating 800
Wire Size 26 to 12
Wire Strip Length 8 to 10
Brand Phoenix Contact
Manufacturer Phoenix Contact
Full Engineering Drawing
Full Engineering Drawing
Instruction/Installation Manual
Instruction/Installation Manual
Specification Sheet
Specification Sheet
