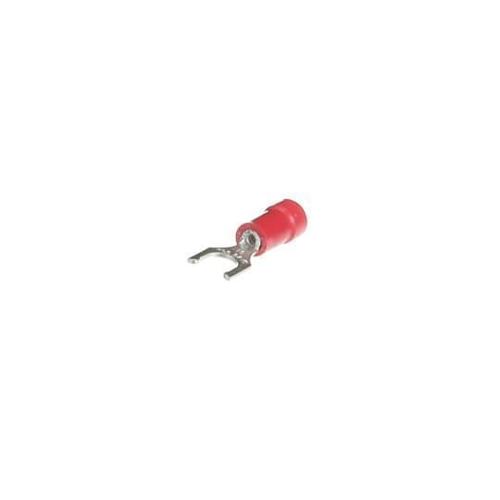

T&B 18RA-10FL INS VNYL LRG FORK TERM

PART 18RA-10FL T-B

MANUFACTURER Sta-Kon

MANUFACTURER PART # 18RA-10FL

Calculating price...

QUANTITY

About this item

Sta-Kon Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.29 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red

CSA Certified|UL 94 V-0 Flammability Rated|UL File No. E9809

Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring|Brazed seam barrel is serrated for high pull-out value|Insulation is Color coded|WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools

Barrel Type Brazed Seam/Serrated

Color Red

Conductor Size 22 to 16

Finish Electroplated Tin

Length 0.97

Material Copper

Series RA Series

Specifications 0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation

Stud Size #10

Temperature Rating 105

Tongue Size 0.29 in W x 0.02 in THK

Tongue Type Locking Fork

Type Insulated

Voltage Rating 600

Brand Sta-Kon

Manufacturer ABB

Specification Sheet

Specification Sheet
