T&B 18RA-10CP VINYL RING 22-18

PART 18RA-10CP T-B

MANUFACTURER Sta-Kon

MANUFACTURER PART # 18RA-10CP

Calculating price...

QUANTITY

About this item

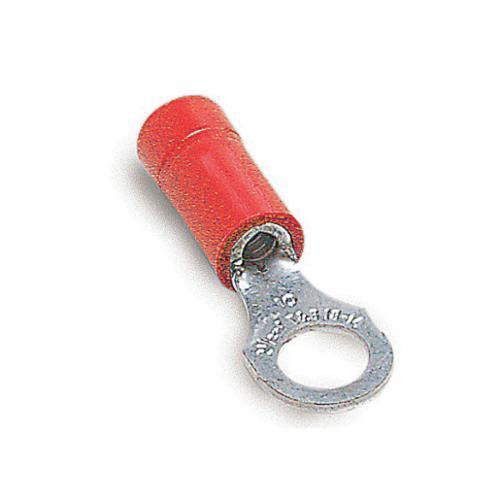

Sta-Kon, 18RA-10CP, Ring Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 0.15 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Red

UL Listed|UL 94 V-0 Flammability Rated|CSA Certified|UL File No. E9809

Terminals are Self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire flex point|Brazed seam barrel that is serrated to obtain high pullout value|Made of copper and has electro-tin plating for corrosion-resistance|20 pieces/pack

Barrel Type Brazed Seam

Color Red

Conductor Size 22 to 16

Finish Tin Coated

Length 0.97

Material Copper

Series RA Series

Specifications 0.15 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation

Stud Size #10

Temperature Rating 105

Tongue Size 0.31 in W x 0.03 in THK

Tongue Type Ring

Type Insulated

Voltage Rating 600

Brand Sta-Kon

Manufacturer ABB

Specification Sheet

Specification Sheet

Catalog

Catalog
