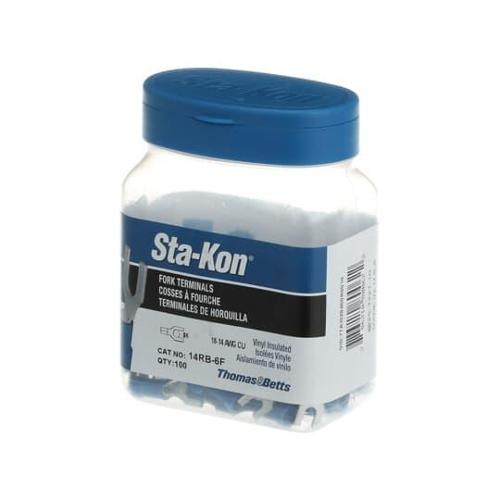

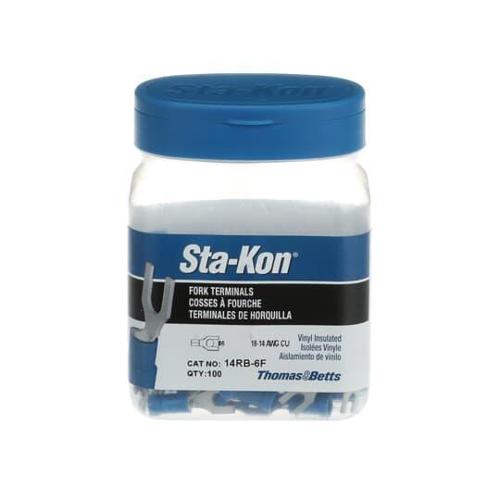

T&B 14RB-6F 16-14INS FORK TERM

PART 14RB-6F T-B

MANUFACTURER Sta-Kon

MANUFACTURER PART # 14RB-6F

Calculating price...

QUANTITY

About this item

Sta-Kon Fork Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, #6 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 0.17 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Blue

CSA Certified|UL 94 V-0 Flammability Rated|UL File No. E9809

Fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire flex point|Brazed seam barrel is serrated for high pull-out value|Insulation is Color coded|WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools

Barrel Type Brazed Seam/Serrated

Color Blue

Conductor Size 18 to 14

Finish Electroplated Tin

Length 0.97

Material Copper

Series RB Series

Specifications 0.17 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation

Stud Size #6

Temperature Rating 105

Tongue Size 0.31 in W x 0.03 in THK

Tongue Type Fork

Type Insulated

Voltage Rating 600

Brand Sta-Kon

Manufacturer ABB

Specification Sheet

Specification Sheet
