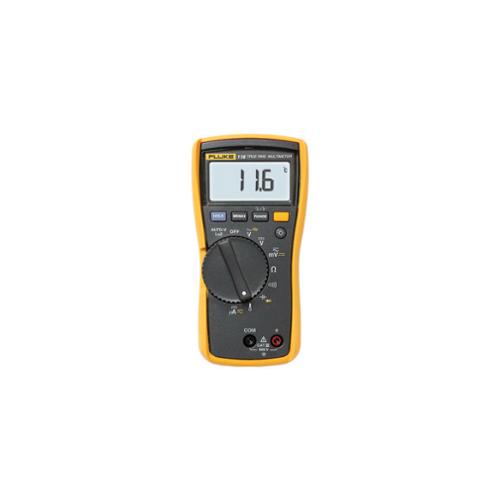

Fluke Digital Multimeter, 600 VAC/VDC, 600 uA, 5 Hz to 50 KHz Frequency, 0.1 Ohm to 40 MOhm Resistance, Safety Rating: CAT III 600 VAC/VDC, 1000 uF Capacitance, 0.5%+2 VAC Accuracy, 0.1 mVAC/VDC Resolution, Digital Display, 9 VDC Alkaline/NEDA 1604A/IEC 6LR61 Battery, No Peak Hold, Yes Diode Test, 1.81 in L x 3.35 in W x 6.58 in H Dimensions, 14 to 122 deg F, Hard Plastic
RoHS Compliant|NEDA 1604A|IEC 61010-1/6LR61|ECCN: 3A992|PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation

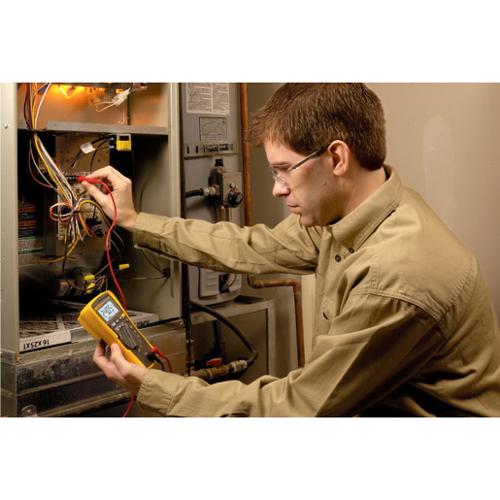

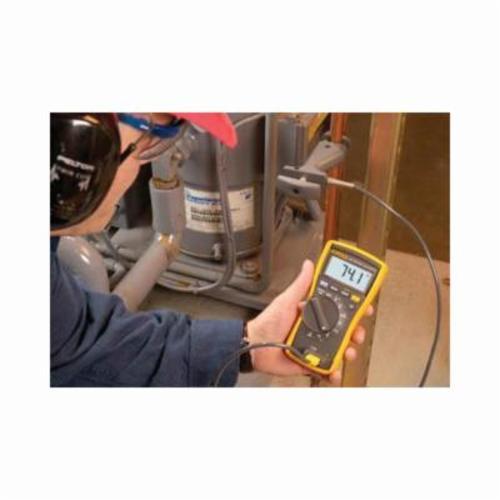

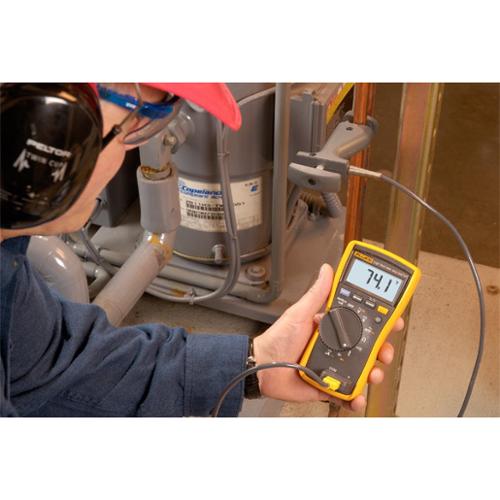

Measures temperature, micro amperage and more|LoZ function prevents false readings due to ghost voltage|Built-in thermometer for HVAC applications|Engineered by Fluke, with a three years warranty|Micro amperage to test flame sensors|Low input impedance helps prevent false readings due to ghost voltage|Large white LED backlight to work in poorly lit areas|Resistance, continuity, frequency and capacitance|Minimum maximum/average with elapsed time to record signal fluctuations|Compact ergonomic design for one handed operation|6 kV peak per IEC 61010-1 600 V CAT III, pollution deg 2|+/-(% of reading counts) - 0.5% 2 for DC volts, 2.0 % 3 (DC, 45 Hz to 500 Hz), 4.0 % 3 (500 Hz to 1 kHz) for auto volts, 1.0 % 3 (DC, 45 Hz to 500 Hz), 2.0% 3 (500 Hz to 1 kHz) True-RMS AC mV, 1.0% 3 (DC, 45 Hz to 500 Hz), 2.0% 3|0.001 to 0.1 V for DC volts, 0.1 V for auto volts, 0.1 mV AC mV True-RMS, 0.001 to 0.1 V for AC volts True-RMS, 1 Ohm for continuity, 0.1 Ohm to 0.01 MOhm for resistance, 0.001 V for diode test, 1 nF to >1000 uF for capacitance, 0.1 deg C - 0.2 deg F for temperature, 0.01 Hz for Hz resolution|6 to 600 VDC volts, 600 V auto volts, 600 mV AC mV True-RMS, 6 to 600 VAC volts True-RMS, 600 Ohm to 40 MOhm resistance, 2 V diode test, 1000 nF to >1000 uF capacitance, 1 nF to 500 uF LoZ capacitance, 600 uA DC uA, 600 uA AC uA True-RMS range|400 hr typical, without backlight battery life|+/-(% of reading counts) - 0.5% 2 for DC mV|5 to 50 kHz AC voltage/45 to 5 kHz AC current
Accuracy
0.5%+2 VAC
Amperage Rating
600
Battery Type
9 VDC Alkaline/NEDA 1604A/IEC 6LR61
Capacitance
1000
Dimensions
1.81 in L x 3.35 in W x 6.58 in H
Diode Test
Yes
Display Type
Digital
Frequency Rating
5 Hz to 50 KHz
Material
Hard Plastic
Peak Hold
No
Resistance
0.1 Ohm to 40 MOhm
Resolution
0.1 mVAC/VDC
Safety Rating
CAT III 600 VAC/VDC
Temperature Rating
14 to 122
Voltage Rating
600
Brand
Fluke
Manufacturer
Fluke
