T&B 10RC-10F 12-10 INS FORK TERM

PART 10RC-10F T-B

MANUFACTURER Sta-Kon

MANUFACTURER PART # 10RC-10F

Calculating price...

QUANTITY

About this item

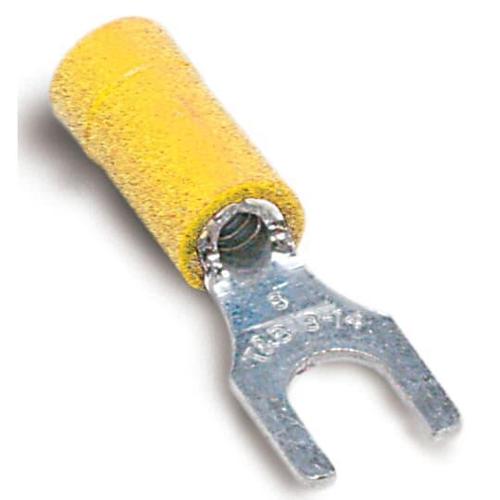

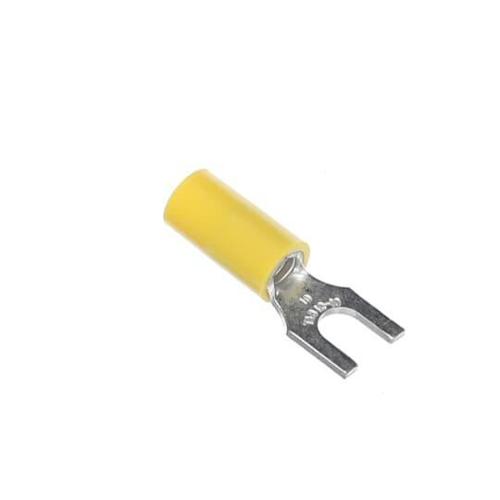

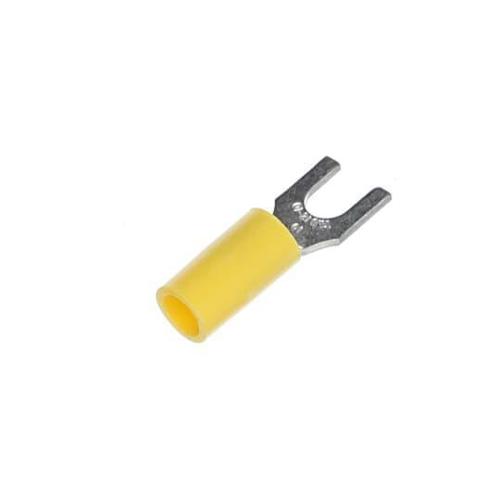

Sta-Kon Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #10 Stud, 1.09 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.38 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow

CSA Certified|UL 94 V-0 Flammability Rated|UL File No. E9809

Fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire flex point|Brazed seam barrel is serrated for high pull-out value|Insulation is Color coded|WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools

Barrel Type Brazed Seam/Serrated

Color Yellow

Conductor Size 12 to 10

Finish Electroplated Tin

Length 1.09

Material Copper

Series RC Series

Specifications 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation

Stud Size #10

Temperature Rating 105

Tongue Size 0.38 in W x 0.04 in THK

Tongue Type Fork

Type Insulated

Voltage Rating 600

Brand Sta-Kon

Manufacturer ABB

Specification Sheet

Specification Sheet

Specification Sheet

Specification Sheet
