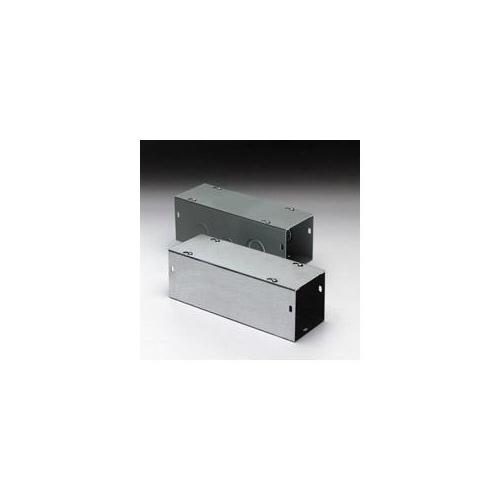

B-LINE 101036G 10X10X36 N1 SC GUTTER

PART 101036G B-LINE

MANUFACTURER B-Line

MANUFACTURER PART # 101036 G

Calculating price...

QUANTITY

About this item

B-Line Wireway, Straight Section, Series: G Series, 36 in Length, 10 in Width, 10 in Height, Screw Cover, 22 Knockouts, 3/4 in, 1/2 in, 1-1/4 in, 1 in Knockout, NEMA 1/IP30 NEMA Rating, Steel, Gray, Acrylic Electro Coated/Painted

CSA C22.2 File No. 26|CSA Certified|IEC 60529|UL File No. 870|UL Listed

Wireway body and cover are fabricated from code gauge steel or galvanized steel|Wireway body has mounting holes on the back|Cover is secured to the body with plated screws|Keyhole slots are furnished on the wireway cover which allow easy access to the inside without removing the screws|Wireway exceeding 72 in L has two overlapping covers|Variety of fitting allow runs which can change direction, junction and terminate|Standard wireway connector have a gate feature which can swing completely open allowing for lay-in of wire and cable|Interchangeable with type 1 hinge cover wireway and fitting when HSCA connector is used|A2 discount schedule|AK1 and Z40 subclass|Wash and phosphate undercoat or galvanized steel finish

Color Gray

Cover Type Screw

Finish Acrylic Electro Coated/Painted

Height 10

Knockout Size 3/4 in, 1/2 in, 1-1/4 in, 1 in

Length 36

Material Steel

NEMA Rating NEMA 1/IP30

Number of Knockouts 22

Series G Series

Type Straight Section

Width 10

Brand B-Line

Manufacturer Eaton
