Home Wire, Cord & Cable Cable Assemblies CLM 09014-88-09 6/2-8/1 4FT 50A RANGE CORD GRAY

CLM 09014-88-09 6/2-8/1 4FT 50A RANGE CORD GRAY

PART 09014-88-09 CLM
MANUFACTURER Southwire
MANUFACTURER PART # 9014SW8809
Calculating price...
QUANTITY

About this item

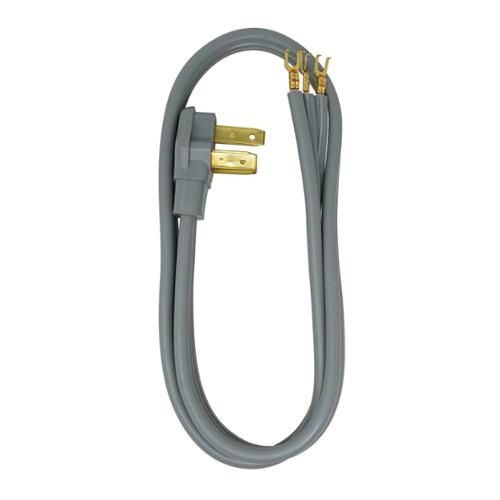

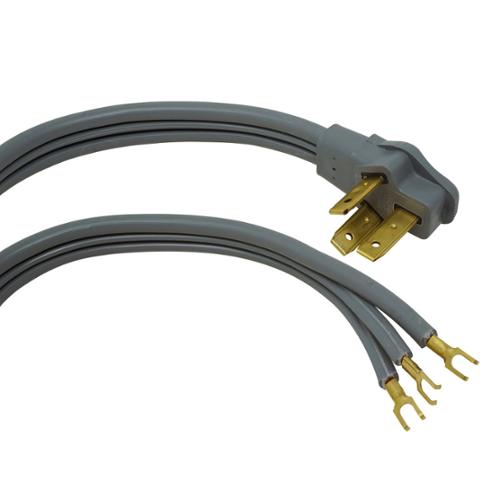

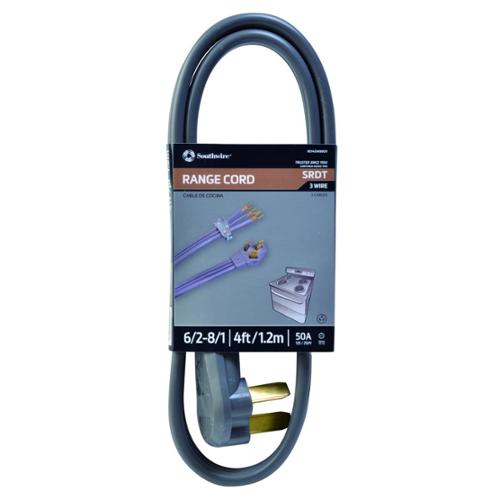

Southwire Range Cord Set, Type SRDT Flat, 125/250 VAC, 50 A, NEMA 10-50P, Bare Copper Conductor, 6 AWG Conductor, 4 ft Cord, NEMA 10-50P Plug, PVC, Gray

RoHS Compliant|UL 817|PROP65: This product contains material that, the State of California has determined, may cause cancer or reproductive harm. www.P65PROP65s.ca.gov/product
6/2 and 8/1 SRDT, 125/250V 50A range power supply cord kit with flanged spade terminals and metal strain relief|PVC, integral insulation and jacket|(2) 6 AWG bare copper|Center conductor (8 AWG neutral) is ribbed conductor identification|Metal, included but not attached strain relief|PVC, gray plug material|1/4 in flanged spade terminal|90 deg inlet male plug|1.71 lb weight|TPE core|5 +/-1 ma|-20 to 60 deg C resistance|Copper conductor|PVC insulation and jacket|2 copper conductors|1.03 x 0.4 in
Amperage Rating 50
Color Gray
Conductor Size 6
Conductor Type Bare Copper
Cord Length 4
End Connection Type NEMA 10-50P
Material PVC
Plug Type NEMA 10-50P
Type Type SRDT Flat
Voltage Rating 125/250
Brand Southwire
Manufacturer Southwire Company
